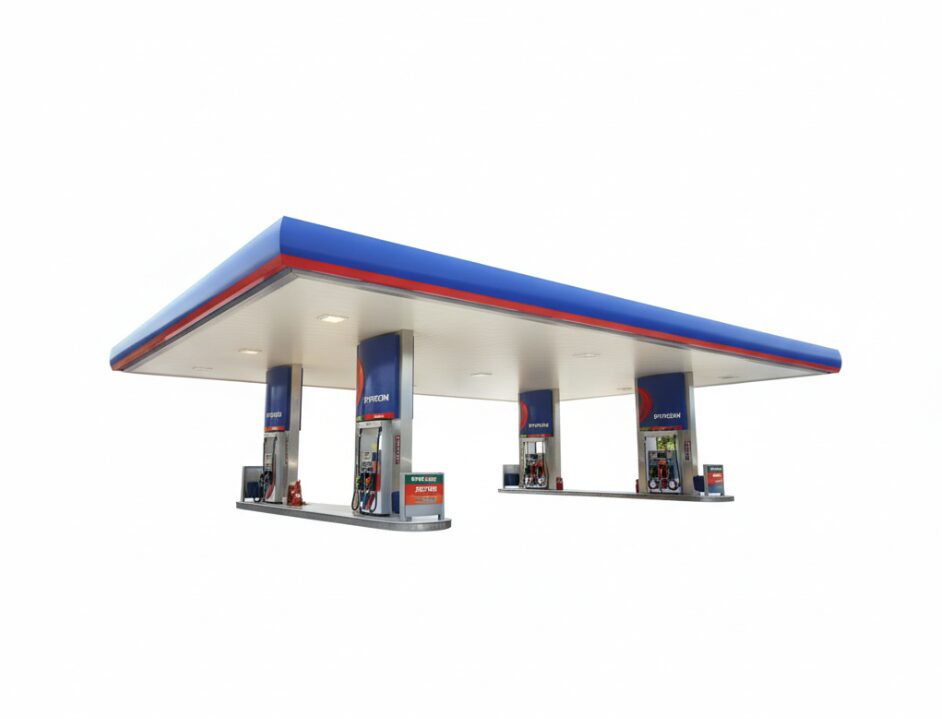

Using Q355B high-strength H-beam as the main skeleton and 85 micron hot-dip galvanized anti-corrosion treatment, Canopy for Gas Station structure can resist typhoons of grade 12 or above and has grade A fire resistance. It provides prefabricated bolt connection components for the construction party, improves the on-site installation efficiency by 30%, and supports bulk procurement.
Q355B
Material
above level 12
Wind resistance
Hot Dip Galvanized
Corrosion Protection

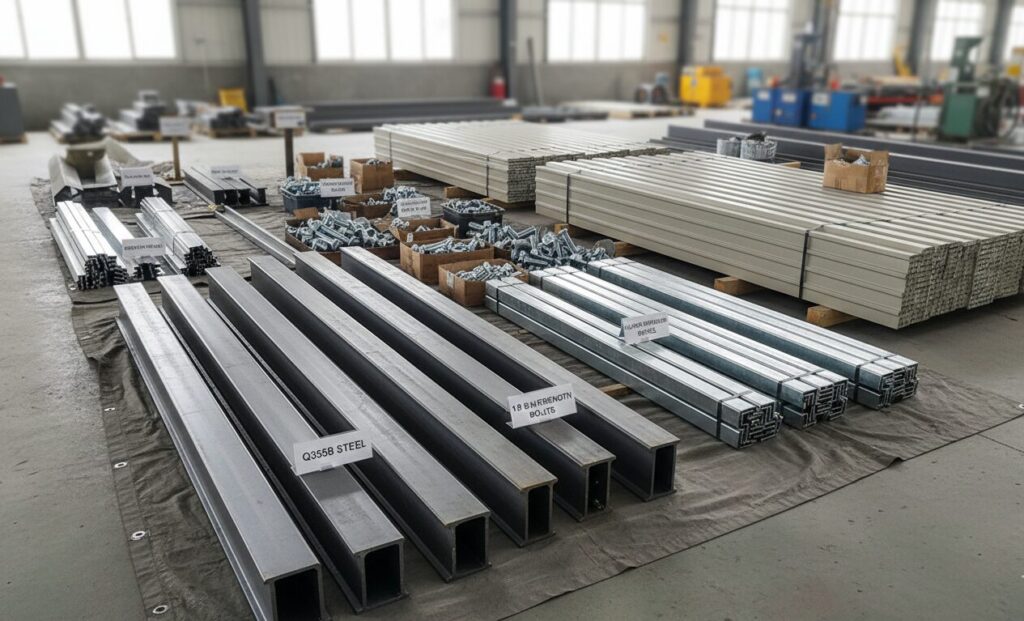

The main beam and column are made of Q355B or Q235B national standard H-shaped steel, and the yield strength is more than 345MPa. Through the optimization design of node rigidity, the roof of the gas station can withstand 8 degrees of seismic intensity, ensuring the structural integrity under extreme geological activities and ensuring the safety of personnel and assets.
All steel components are deeply hot-dip galvanized after manufacture, and the average thickness of the zinc layer exceeds 85 microns. This process makes Canopy for Gas Station have strong antioxidant capacity in humid, salt spray or industrial pollution environment, and the anti-corrosion life of the structure can reach 50 years, which greatly reduces the maintenance cost of the whole life cycle.
The cutting, drilling and welding of all components are completed in the factory, and the hole position tolerance is controlled within 1mm. On-site installation is completely connected by 10.9S high-strength bolts without on-site welding. Compared with traditional construction methods, the overall construction period is shortened by 30%, and safety hazards caused by on-site hot work are effectively avoided.

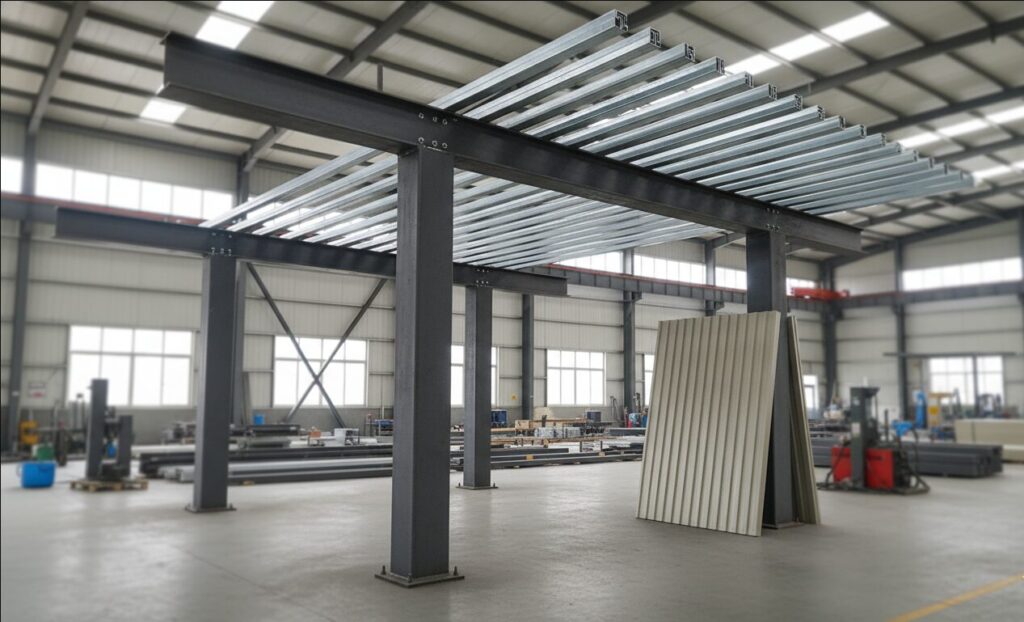

According to the meteorological data of the installation site, the design value of the ceiling roof live load can reach 0.5kN/m², which can withstand the wind speed of 120 kilometers per hour and the snow pressure of 50cm thick. By increasing the density of C- type or Z-type purlins, roof panels can be effectively prevented from overturning or deformation in windy weather.

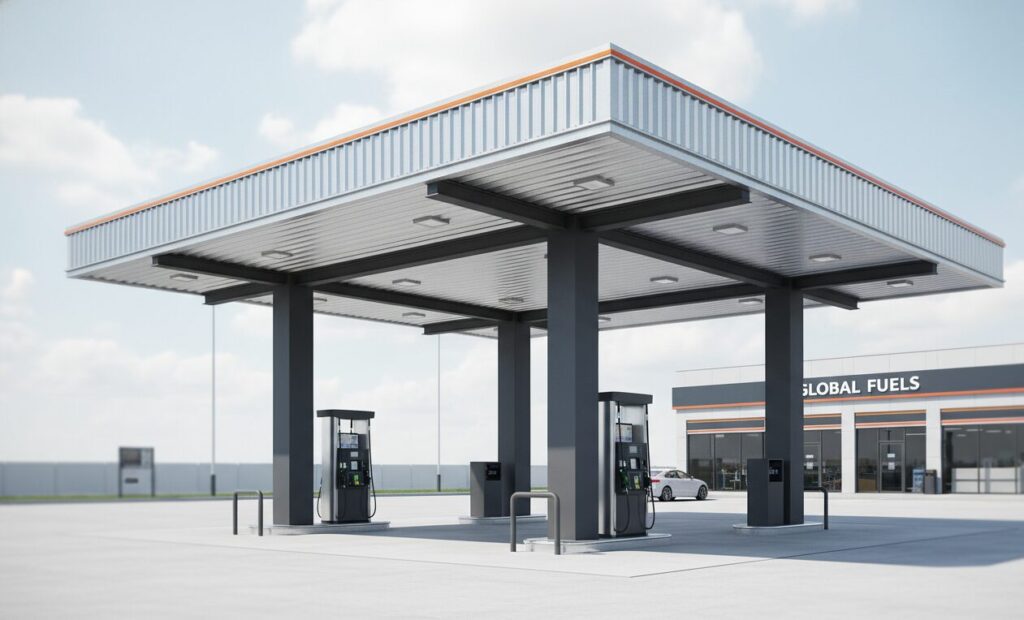

The eaves and columns are outsourced with 4mm thick high-quality aluminum-plastic panels, and the surface is coated with PVDF fluorocarbon paint with a coating thickness of not less than 25 microns. The material has a strong anti-ultraviolet ability, to ensure that in the outdoor exposure environment for 15 years does not fade, not powder, to maintain the brand image of the gas station freshness.
The gutter is formed by bending a 3mm thick stainless steel plate and is matched with a built-in PVC downpipe. The drainage amount is designed to meet the requirement that the rainfall of 150mm per hour does not overflow. At the same time, the standard LED explosion-proof lamp installation interface and line channel are reserved to ensure the perfect integration of the lighting system and the ceiling structure without exposed conduits.
| Parameter categories | Technical Specifications |
| Main component materials | Q355B / Q235B high-frequency welded H-beams |
| Secondary component materials | Q235B cold-formed thin-walled C-shaped or Z-shaped steel (galvanized strip steel) |
| Surface anti-corrosion treatment | Hot-dip galvanizing, zinc layer thickness ≥600g/m² or 85μm |
| Wind resistance level | Design wind speed 120km/h to 180km/h (customized according to project site) |
| Snow load resistance | 0.50 kN/m² 至 1.50 kN/m² |
| Seismic fortification intensity | 8 degrees |
| Roofing System | 0.5mm/0.6mm V-840/V-900 Color Steel Corrugated Sheet |
| Eaves decoration materials | 4mm aluminum composite panel or 2.5mm aluminum single panel (PVDF coating) |
| Connection method | 10.9S grade high-strength torsion-shear bolt connection |
| Fire resistance rating | Class A non-combustible materials |
| Column spacing span | Standard cantilever length is 6m-12m, with a maximum cantilever length of up to 8m. |

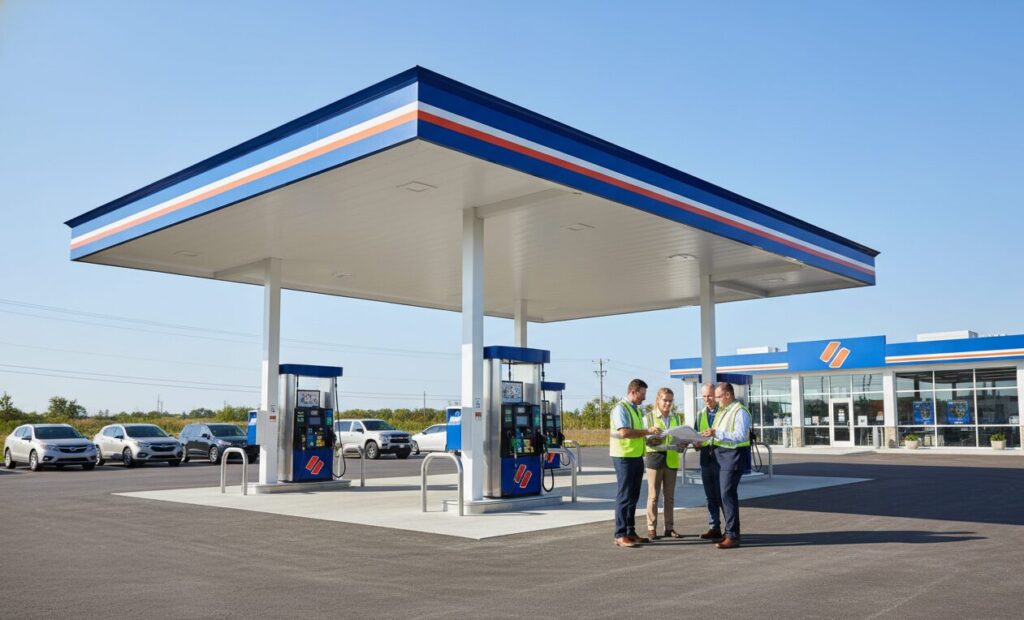

It is suitable for large chain oil brands, which need unified VI image standard and high durability building structure. The product can accurately match brand color cards and specific styling requirements, ensuring that sites across the country maintain a consistent high-end appearance and structural safety.

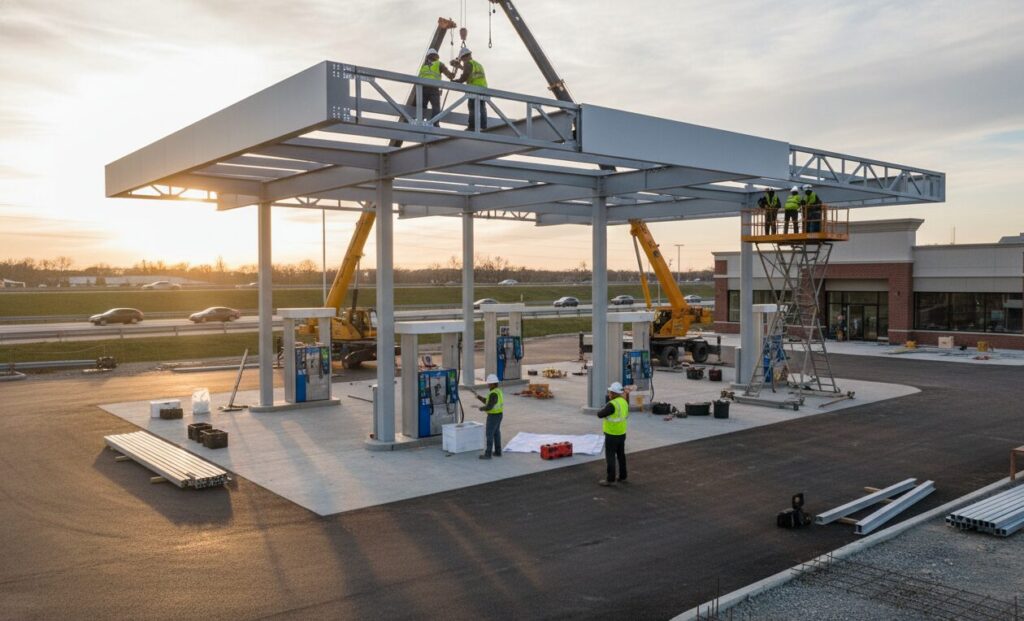

For the engineering company responsible for the overall construction of the gas station, the prefabricated bolt connection design greatly simplifies the difficulty of on-site construction. Precise component sizing reduces man-hours for on-site modifications, helping contractors to tightly control project schedule nodes and labor costs.

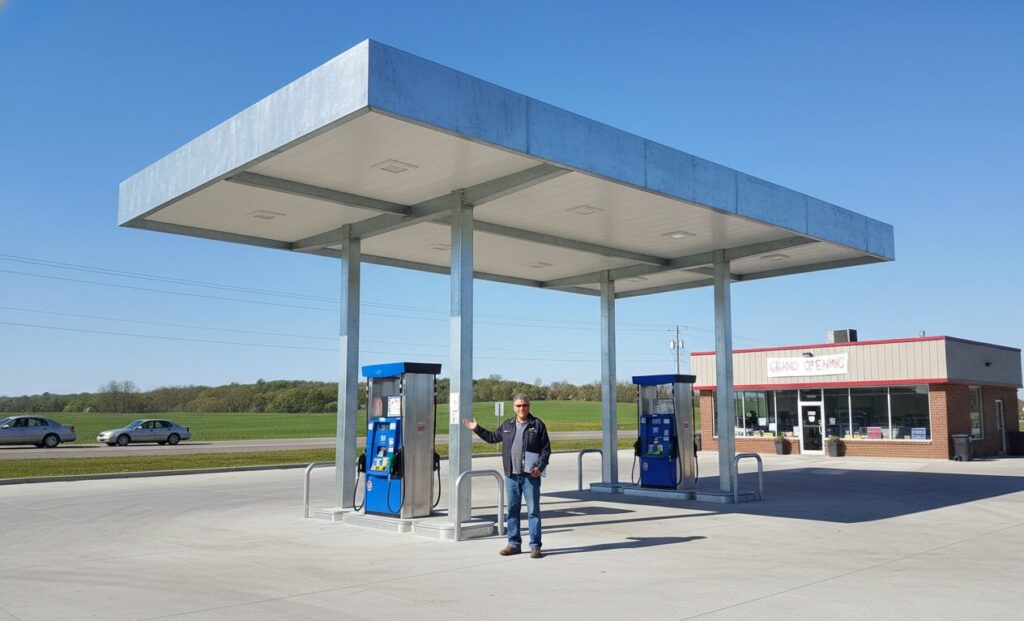

Suitable for individual investors who focus on cost performance and long-term operating costs. The long life and low maintenance characteristics of hot-dip galvanizing means that owners do not need to invest a lot of money to remove rust or replace the structure in the next few decades, maximizing the return on investment.

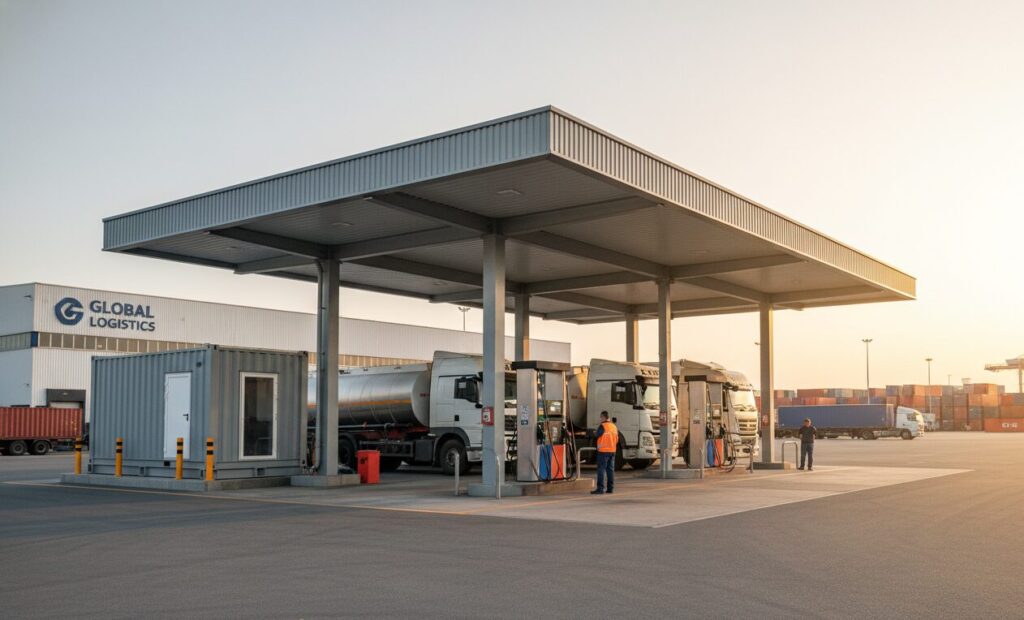

It is applicable to the construction of supporting refueling facilities for self-use skid-mounted gas stations or logistics fleets within enterprises. The ceiling structure is flexible, can be customized according to the size of the site single column or double column cantilever structure, does not occupy too much ground rotation space, convenient for large trucks to pass.
Provide free CAD floor plan and 3D effect design before sales, and calculate the local wind and snow load. After-sales service provides detailed installation instruction manuals and videos, and engineers can be dispatched to guide the installation on site for large-scale projects. The main body of the structure provides a 5-year warranty, and the accessories provide a 1-year warranty.
The design service life of the main body of the steel structure is more than 50 years, and the color retention period of the outer aluminum-plastic plate decorative surface layer is 15 to 20 years. It is recommended to clean the leaves and debris in the gutter every six months to prevent water accumulation, and check the bolt fastening of the main connection nodes once a year to ensure the long-term stability of the structure.
