Agricultural Steel Buildings Industrial Grade Quality
GAOERJI provide customized agricultural steel structure buildings with large span and excellent corrosion resistance to ensure the high safety and space efficiency of agricultural products storage and livestock and poultry breeding. GAOERJI is a source manufacturing plant with independent design institutes and advanced production lines, eliminating the need for traders and providing you with highly advantageous direct supply at factory prices and full-process technical support.
Q355B high strength structural steel Material
12 m to 60 m No column design Span range
hot dip galvanized layer thickness 85 microns Surface treatment
more than 50 years standard Service life
support 150 kilometers per hour wind speed Wind resistance level
40% shorter than traditional buildings Construction time
color profiled steel plate or sandwich panel Roof material
Our products
Agricultural steel structure buildings are mainly used in bulk grain storage centers, modern livestock and poultry breeding bases, large-scale agricultural machinery storage warehouses and agricultural products primary processing workshops.
agricultural steel buildings characteristics
super large span no column space:
Through the optimized design of the portal steel frame, a net span of up to 60 meters is achieved. This eliminates the obstacles to the operation of large harvesters, tractors and other agricultural machinery, and the effective utilization of space is more than 20 percent higher than that of traditional structures.
Excellent corrosion resistance:
In view of the high ammonia and high humidity environment of the farm, the steel components are treated by double-sided hot-dip galvanizing, and the zinc layer has strong adhesion. This process can effectively block chemical corrosion, so that the building in the harsh agricultural environment can still maintain 50 years of structural stability.
Precision Modular Prefabrication:
All components are processed by CNC machine tools in the factory, and the hole tolerance is controlled within 2mm. This high-precision prefabrication ensures that the bolt connection can be realized without welding on site, which greatly reduces the construction difficulty and ensures the installation accuracy.
Strong meteorological adaptability:
The structure calculation strictly refers to the local snow pressure and wind load data, and can resist the strong typhoon of grade 12 and super thick snow. This provides a stable indoor climate for the farming industry and reduces the economic losses caused by natural disasters to crops or livestock assets.
fully enclosed insect and rodent control design:
The enclosure system uses a special bite connection technology with minimal gaps. With the bottom of the professional edge design, effectively prevent the entry of rodents and harmful insects, to ensure the quality and safety of food storage.
Intelligent System Integration Support:
The installation interface of automatic ventilation, lighting belt and spray system is reserved. The structural scheme can complete the load calculation in the design stage, support the later installation of photovoltaic panels or automated feeding system, and help the transformation of traditional agriculture to intelligent agriculture.
Detailed structural parameters table for agricultural steel buildings
| Parameter classification | Specific indicators and specifications (GAOERJI Agricultural Standards) |
| Main framework keywords | agricultural steel buildings |
| Steel grade | Q235B, Q355B, ASTM A572 |
| Welding process | Submerged arc welding and ultrasonic non-destructive testing |
| Purlin type | Cold-formed thin-walled C- or Z-shaped steel |
| Drainage system | External stainless steel gutters and PVC downpipes |
| Fire rating | Level II fire resistance standard (fire-retardant coating can be applied) |
| Connection method | 10.9S grade high-strength large hexagonal bolt connection |
| Lighting solutions | Polycarbonate transparent roofing sheet or skylight panel |
agricultural steel buildings contrast point
Compared with traditional wood or brick-concrete structures, GAOERJI agricultural steel structures have stronger environmental adaptability and very low maintenance costs. GAOERJI, through accurate structural mechanics simulation, the amount of steel used per unit area is optimized under the premise of ensuring safety, thus significantly reducing the customer’s initial infrastructure investment.
To deal with the problem of high ammonia corrosion:
GAOERJI aiming at the acid-base corrosion in animal husbandry, the multi-layer special coating technology is adopted to solve the pain point of the structure of ordinary buildings in the breeding environment.
To deal with the seasonal rush problem:
the GAOERJI adopts the modular assembly of full bolt connection, which solves the construction pain point of traditional building construction cycle is long and easy to miss the agricultural planting or harvesting season.
Dealing with the limited span:
with advanced design software, the GAOERJI has solved the pain point that too many pillars in the traditional building cause large agricultural machinery to be unable to enter the site or the storage stacking is limited.

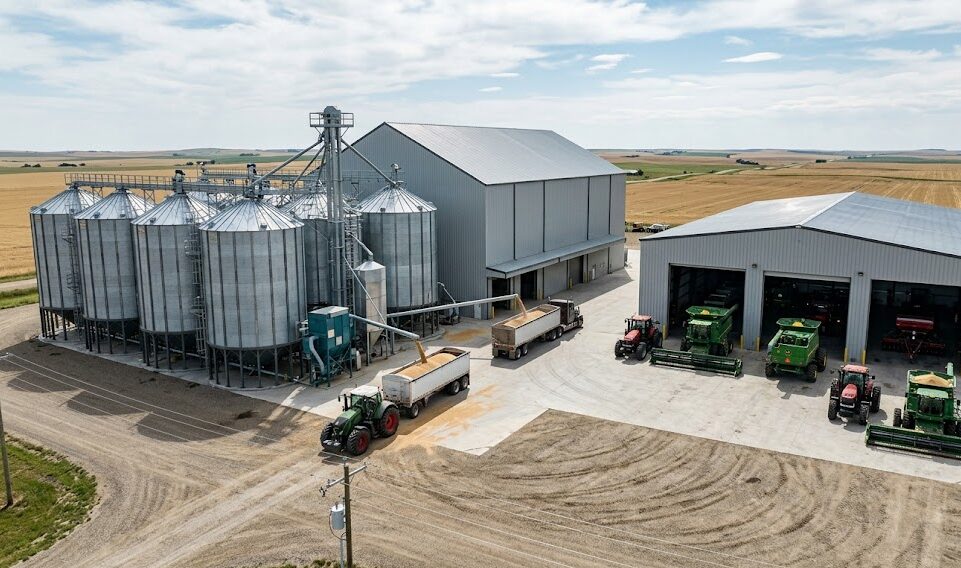

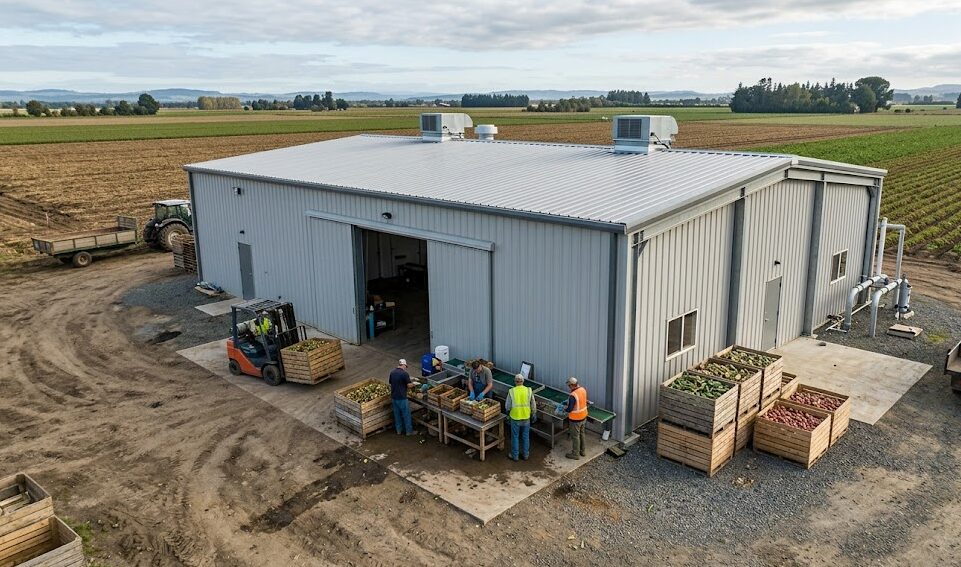

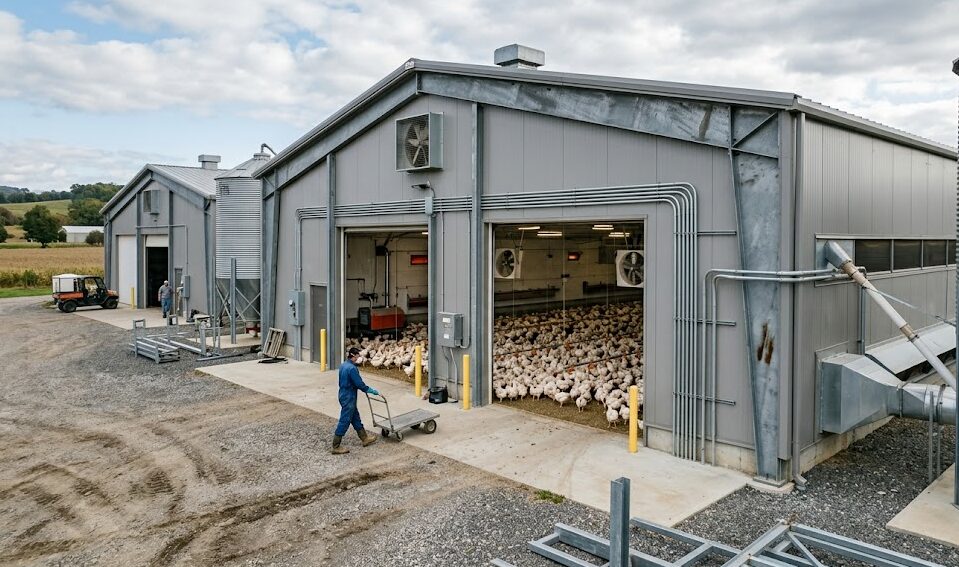

agricultural steel buildings for the crowd
Large-scale farmers:
It is suitable for operators who have more than 1,000 mu of arable land and need to build large-capacity grain silos or mechanical warehouses. Such groups seek long-term durability and flexibility in large spaces.
modern aquaculture enterprise investors:
Applicable to large-scale broiler, pig or dairy farming enterprises. This kind of products can be perfectly adapted to modern agricultural equipment such as automatic manure cleaning and automatic feeding.
agricultural products processing and cold chain logistics providers:
It is suitable for enterprises that need to quickly establish a primary processing workshop or a constant temperature cold storage in the field. The excellent thermal insulation expansion of the steel structure meets the needs of agricultural products preservation.
agricultural infrastructure works contractors:
Applicable to contractors undertaking government or private agricultural projects. The standardized drawings and technical support provided by the GAOERJI can assist the contractor in the rapid delivery of qualified agricultural buildings.
agricultural steel buildings instructions
Foundation embedded positioning:
Concreting shall be carried out according to the anchor bolt layout provided by the GAOERJI to ensure that the axis tolerance of embedded bolts is within the specified range.

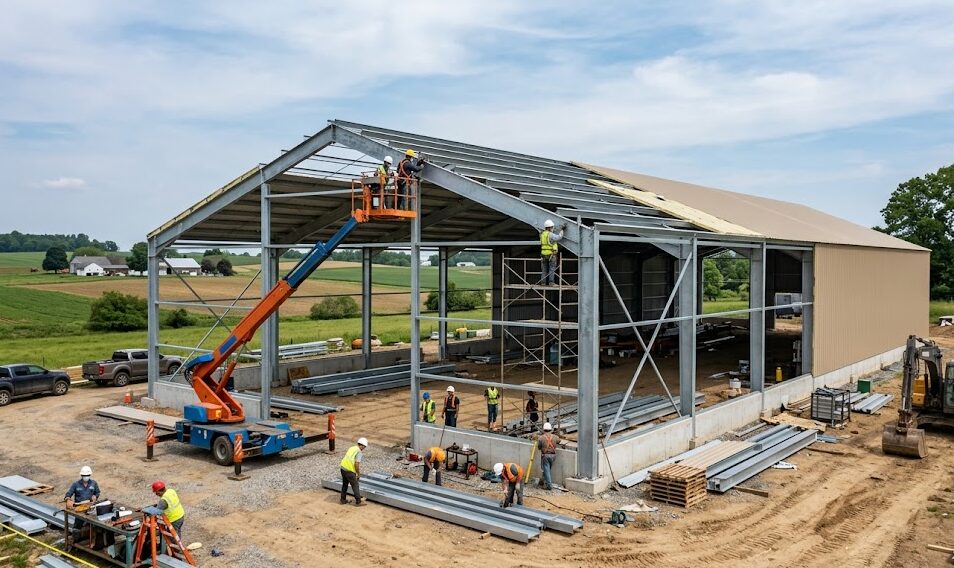

Hoisting of main frame
Lift the main steel column according to the numbering sequence, then install the roof beam and cross support to form a stable space stiffness unit, and then tighten the high-strength bolts.
Laying of enclosure system:
Install wall panels and roof panels from bottom to top, and pay attention to the overlapping direction should follow the local perennial dominant wind direction to enhance the waterproof effect.
Regular inspection and maintenance:
Every two years, spot check the bolt connection at the key stress point, and clean up the agricultural dust or fallen leaves in the roof gutter to keep the drainage smooth.
factory and certificate
certificate
FAQ And Contact Us
Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.
Is the cost of agricultural steel buildings higher than brick-concrete structures?
Although the initial material investment is slightly higher, the overall total cost is often more advantageous because the construction period is shortened by 50% and the foundation requirements are lower.
Can this kind of building withstand a strong typhoon or heavy snow?
Yes, it’s possible. GAOERJI will accurately calculate the load based on the meteorological historical data of your location to ensure the structural safety of the building in extreme climates.
How long can the anti-rust effect last in the farm environment?
The anti-corrosion life of steel components using the hot-dip galvanizing process is usually 25 to 30 years in a typical farming environment.
Can I customize the height according to my existing farm machine size?
Yes, it’s possible. We can according to your largest agricultural machinery and equipment height, custom design cornice height and large size sliding door.
Does the installation process require professional welding personnel?
No need. Our products adopt full bolt connection design, and ordinary installation workers can complete the assembly after GAOERJI technical guidance.
Do you provide on-site guidance after export?
Yes. The GAOERJI has a professional overseas technical team, which can supervise the installation process on site through remote video or stationed engineering and technical personnel.
Please feel free to contact us. We look forward to hearing from you.
