Two Storey Steel Structure Building Support Customization
The Two Storey Steel Structure Building, specially designed for industrial and commercial use, adopts prefabricated Q355B steel components, shortens the construction period by 40%, and the floor load can reach 500kg/m, ensuring long-term stable operation,and provides bulk purchase.
Q355B steel
Main material
Level 8 fortification
Anti-seismic
≥ 50 years
Life
Two Storey Steel Structure Building characteristics
high yield strength steel
Using national standard Q355B hot rolled H-beam as the main frame, the yield strength ≥ 355MPa, compared with ordinary Q235 steel structure strength increased by 15%, while reducing the amount of steel by 10% to ensure large-span support capacity, the structure is more stable.
No tremor in floor load-bearing system
The second-floor floor system adopts galvanized profiled steel plate (floor bearing plate) combined with reinforced concrete cast-in-situ, and the standard live load is designed to be 3KN/m to 5KN/m, which perfectly meets the requirements of heavy machinery equipment placement or high-density office storage without tremor.
Prefabricated Bolt Connection Technology
100% of all components are prefabricated and drilled and welded in the factory. Only high-strength bolts are required for connection on site, and there is no on-site welding operation. Compared with traditional concrete buildings, the construction efficiency is improved by 40%, and the main construction of 3000 square meters can be completed in an average of 60 days.
Industrial grade anti-corrosion coating to extend the maintenance cycle
The surface of the component is treated by shot blasting (Sa2.5 grade), and two layers of epoxy zinc-rich primer are sprayed or hot-dip galvanized with a thickness of 85μm, which can effectively resist industrial acid and alkali corrosion and humid environment, and extend the maintenance period to more than 15 years.
Excellent seismic and wind resistance
The steel structure system has excellent ductility and is designed according to the seismic level 8 standard to effectively absorb seismic energy. The wind resistance is designed to reach 120 km/h(0.6KN/m²) to ensure structural integrity in typhoons or extreme climates.
Flexible large-span space layout
Thanks to the characteristics of high-strength steel, the bottom layer can realize a large-span design without columns of 9-12 meters, and the utilization rate of the second floor space is as high as 95%, which is convenient for flexible division of production lines, warehouse areas or open office areas according to business needs.
Two Storey Steel Structure Building detailed parameter table
| Parameter categories | Detailed specifications |
| Main Frame | Q355B / Q345B welded H-beams, shot blasted to Sa2.5 grade. |
| Secondary Frame | Q235B cold-formed C/Z-shaped steel purlins, galvanized layer thickness ≥275g/m² |
| Floor System | Galvanized decking + cast-in-place concrete + reinforcement |
| Roof & Wall Panel | 0.5mm/0.6mm color steel single panel or 50mm/75mm EPS/PU/rock wool sandwich panel |
| Floor Load | Standard: 300kg/m² – 500kg/m² (customizable up to 1000kg/m²) |
| Wind Load | 0.3 kN/m² – 0.8 kN/m² (Customized according to local climate standards) |
| Snow Load | 0.3KN/m² – 0.5KN/m² |
| Connection | 10.9 grade high-strength bolts |
| Doors & Windows | Industrial overhead doors/roller shutters; aluminum alloy/PVC windows |

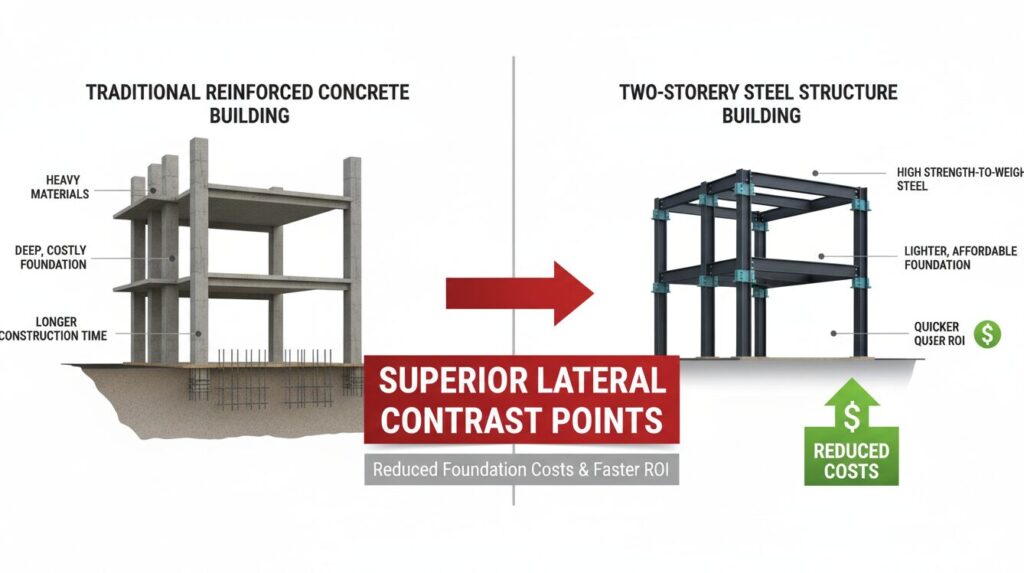

Two Storey Steel Structure Building lateral contrast points
Compared to traditional reinforced concrete buildings, the Two Storey Steel Structure Building utilizes the high strength-to-weight ratio of steel, significantly reducing the cost of the foundation and significantly shortening the return on investment cycle. The following are specific solutions to the pain points of traditional buildings:
Solve the pain point of long project investment return period
The construction period of traditional concrete double-deck building usually takes 6-10 months, which is greatly affected by the weather. This product adopts factory prefabrication and on-site full bolt assembly mode, which is not restricted by seasons, shortens the overall delivery time to 3-4 months, helps enterprises put into operation half a year in advance, and quickly returns funds.
Solve the pain point of high cost of soft soil foundation.
The double-layer concrete building has great self-weight and high requirements for foundation bearing capacity. The steel structure product weight is only 1/3 of the same area of concrete buildings, significantly reducing the foundation load, can save about 30% of the foundation excavation and concrete pouring costs, especially suitable for the general geological conditions of the region.
Solve the pain point that the space layout is limited and cannot be transformed.
There are many load-bearing walls in traditional buildings, and the internal space is divided and fixed, so the later transformation is extremely difficult. This product adopts frame structure system, no load-bearing wall inside, and with a column distance of more than 9 meters, the purchaser can freely re-divide the partition or increase the equipment assembly line in the future business expansion without destructive removal.
Two Storey Steel Structure Building Target audience

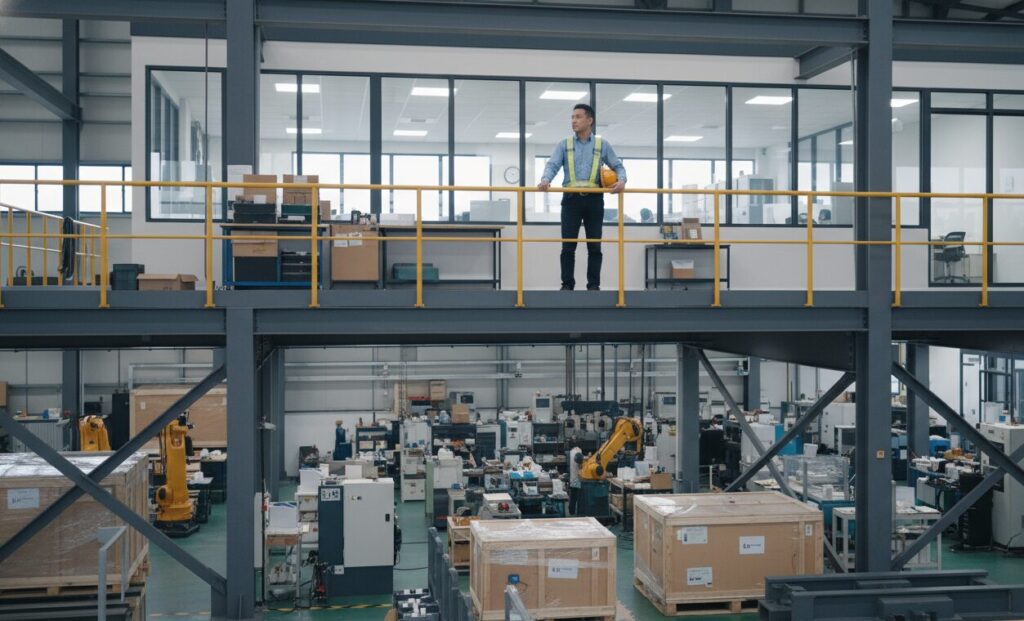

Production-oriented manufacturing business owners
Suitable for factories that need “lower production, upper office” or “lower storage, upper assembly” mode. The high-floor load-bearing design meets the installation of heavy machinery, and the double-layer structure maximizes the use of limited industrial land area.

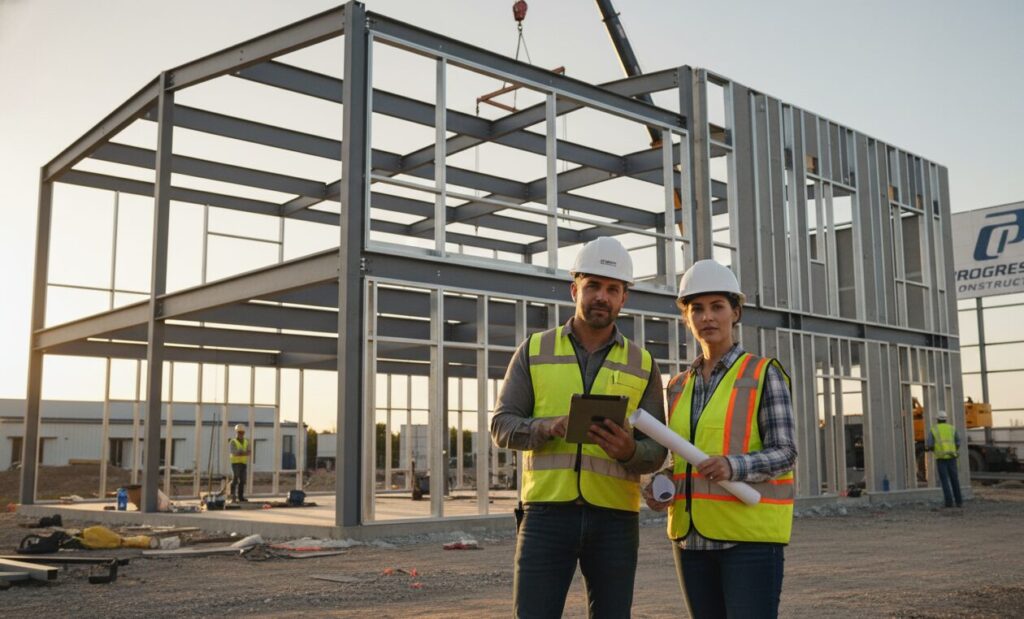

Professional construction contractors and engineering firms
For commercial or industrial projects with tight deadlines, standardized connection nodes and prefabricated components can significantly reduce the number of on-site workers and management difficulties, ensuring high-quality delivery of the project within the contractual period or even ahead of schedule.

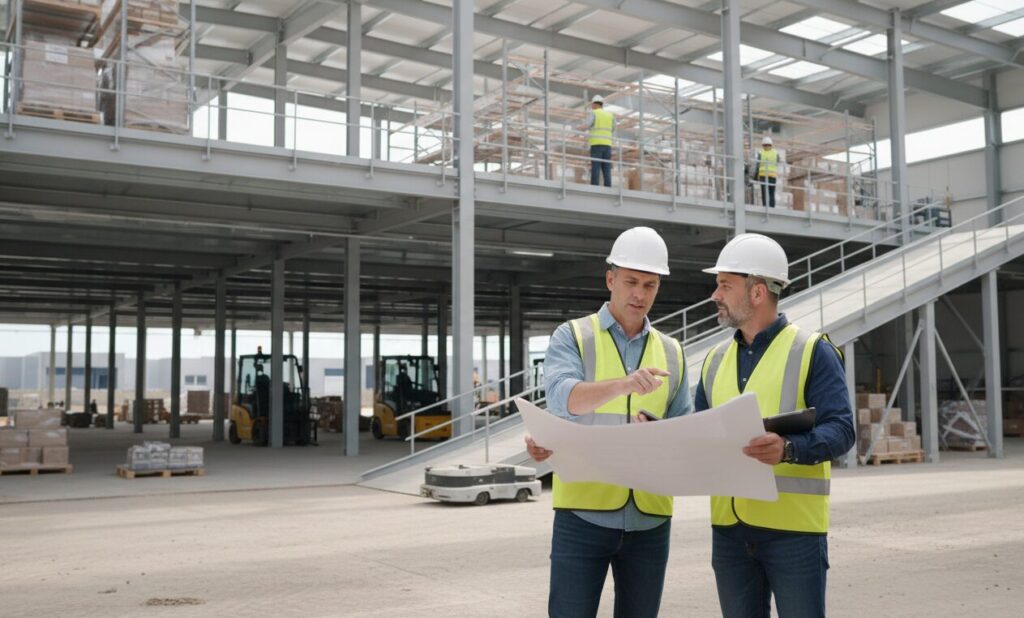

Logistics and warehousing center operators
Applicable to the construction of multi-layer transit warehouse. The large-span design facilitates the free passage of forklifts and AGV trolleys on the bottom floor, and the second floor can be used as a value-added service area or a light cargo storage area to improve the storage capacity rate per unit area.

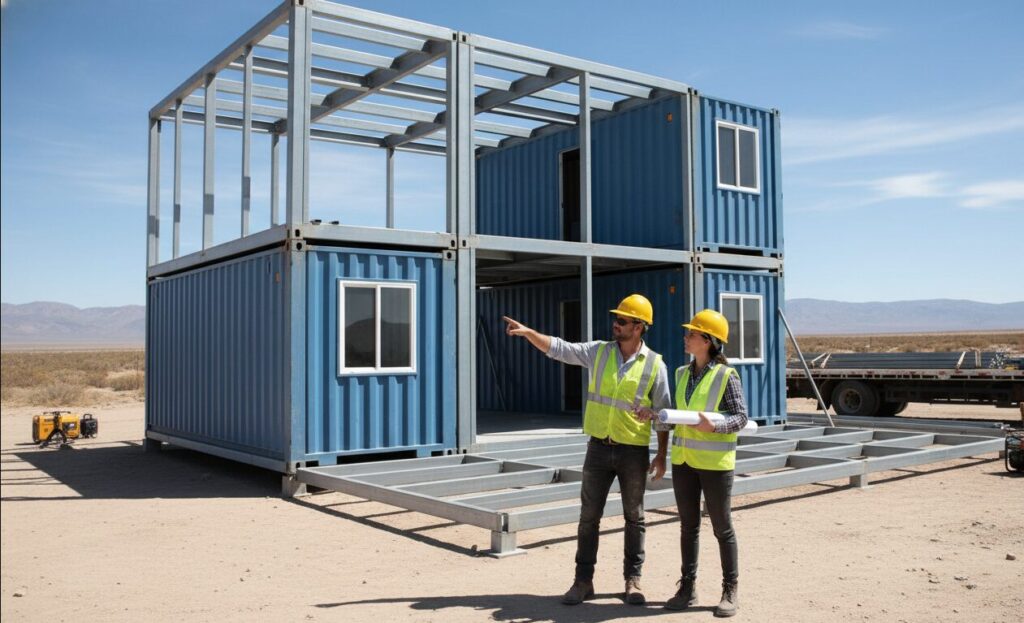

Remote area project or temporary camp developer
For mining office buildings or large camps where concrete transportation is difficult due to remote geographical location, steel structure components are convenient for long-distance transportation of containers, and there is no need for a large amount of water operation on site, which is an ideal rapid construction scheme.
Two Storey Steel Structure Building instructions for use
Positioning of embedded parts and foundation construction
The anchor bolts shall be accurately embedded according to the drawings, and the error shall be controlled within ± 2mm. After the concrete foundation reaches 75% of the design strength, the steel column lifting operation can be carried out.
Hoisting and correction of main steel frame
Hoist the first layer of steel column, the second layer of steel beam and floor beam in turn. Correct the verticality with theodolite to ensure that the column top offset is less than H/1000, and then tighten all 10.9 grade high strength bolts.
Floor bearing plate laying and sub-structure installation
Galvanized floor bearing plate is laid on the floor beam and stud welding is carried out, and then roof purlin, wall purlin and corner support system are installed to form a stable network stress system.
Envelope system and concrete pouring
Installation of roof panels and wall panels, do a good job of waterproof node treatment. Finally, steel bar binding and concrete pouring on the second floor are carried out. After curing, doors and windows can be installed and interior decoration can be carried out.
factory and certificate
certificate
FAQ And Contact Us
Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.
Q1: How long is the service life of the Two Storey Steel Structure Building?
A: According to the standard industrial anti-corrosion design (such as Sa2.5 rust plus epoxy zinc-rich paint), the service life of the main structure can reach more than 50 years. If the hot dip galvanizing process is used, the service life can be extended to 70 years in the general atmospheric environment.
Q2: How to solve the problem of sound insulation and vibration on the second floor?
A: We adopt the combination floor system of “floor bearing plate + reinforced concrete (usually 100-120mm thick). The concrete layer provides excellent mass damping, effectively isolating noise between floors, and eliminating tremor when people are walking or equipment is running.
Q3: Can the product resist typhoon or strong wind?
A: Yes. Our design engineers will calculate the wind load based on the wind speed records of your project site (such as AISC or Eurocode standards), and the design wind resistance is usually more than 120 km/h. For typhoon areas, we will encrypt the purlins and thicken the support system.
Q4: What are the options for wall materials? What is the insulation performance?
A: standard for 0.5mm color steel veneer. If there is a need for insulation, sandwich panels (Sandwich Panel) are recommended. The thermal conductivity of 50mm PU (polyurethane) sandwich panel is only 0.024 W/m · k, and its thermal insulation effect is equivalent to 500mm thick brick wall, which is very suitable for temperature control environment.
Q5: Is custom design supported according to my land size?
A: Yes, we offer 100 percent customized service. All you need to do is provide the size of the land (length x width), the use and the expected floor load, and our structural engineers will provide a preliminary CAD layout and 3D model plan within 48 hours.
Q6: How to prevent damage to components during transportation?
A: All steel components will be numbered and packed before loading. H-section steel shall be provided with protective sleeves at both ends. Purlins shall be packed in bundles and loose parts shall be packed into wooden boxes. We will optimize the loading plan according to the container size (Open Top or 40HQ) to prevent collisions and scratches during transportation.
Please feel free to contact us. We look forward to hearing from you.
