Project Basic Information

Project Name: Morocco-Tangier Warehouse

Project Size: 75m × 35m × 20m (Length × Width × Height)

Project Area: 4,000 ㎡ (including 500㎡ prefabricated steel mezzanine office)

Material Type: Roof/wall fireproof pu rock wool sandwich panel, lightweight steel structure frame, modular prefabricated steel mezzanine system

Project Time: 2024

Project Overview

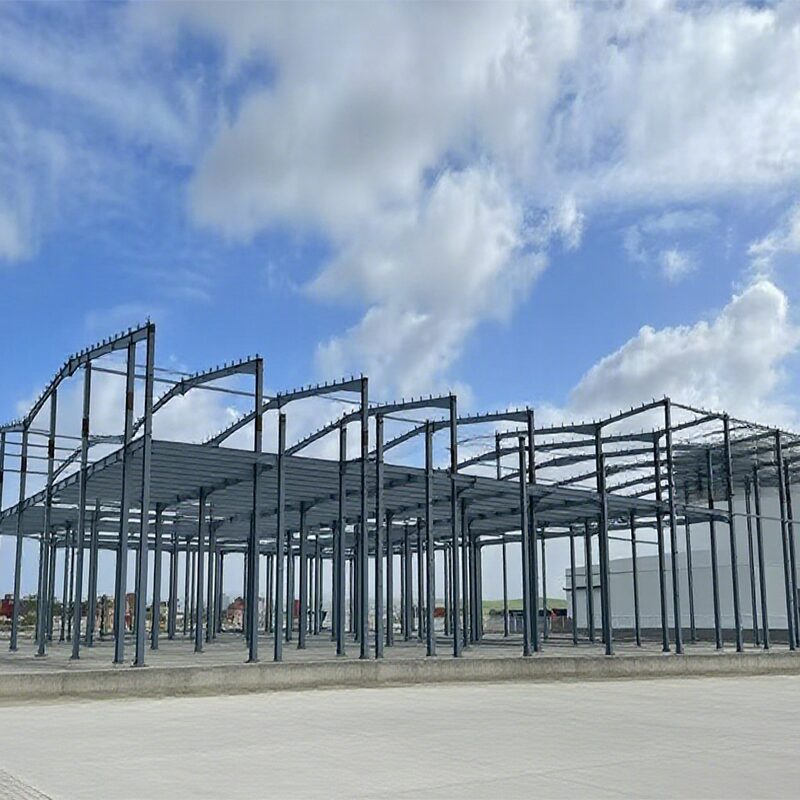

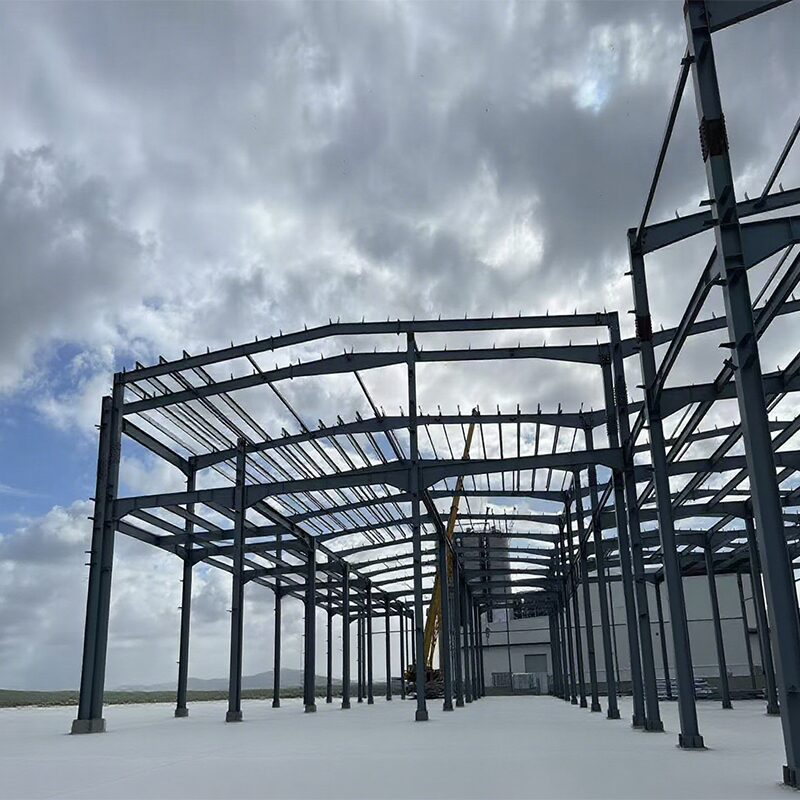

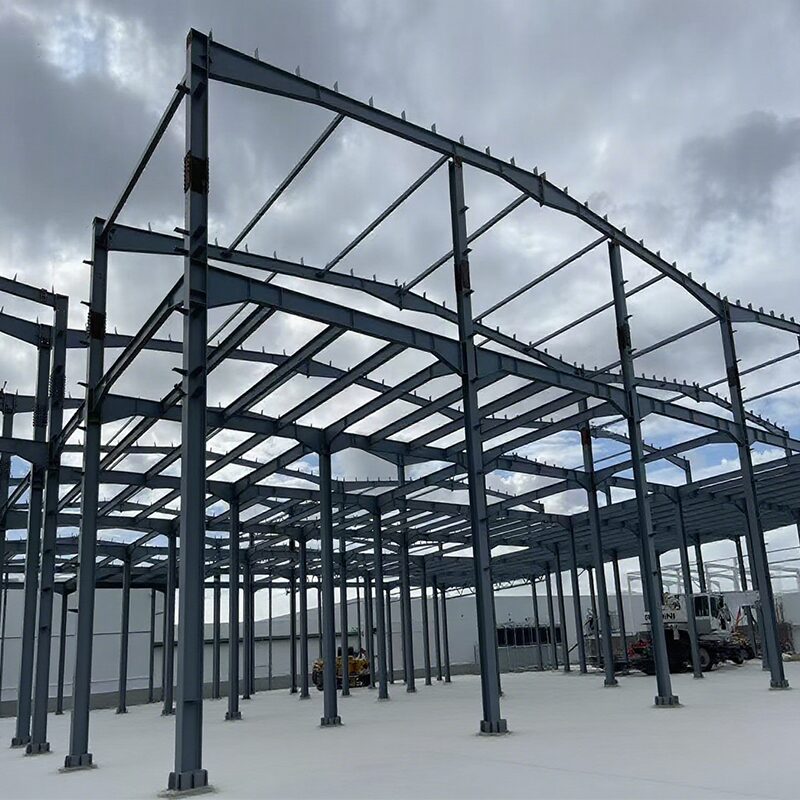

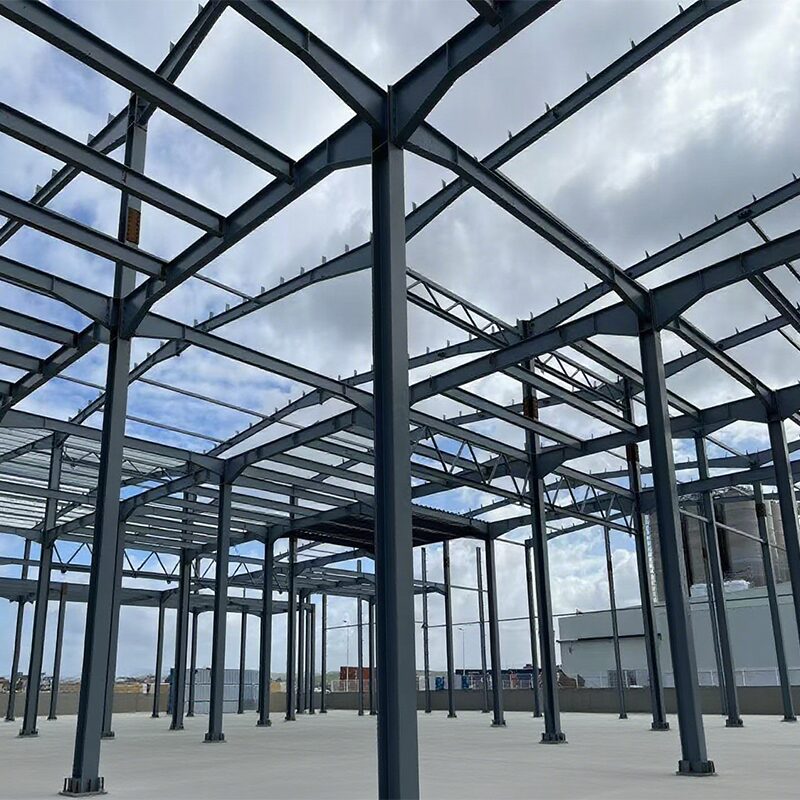

This 4000㎡ integrated prefabricated industrial facility is in Tangier, Morocco. It’s used for logistics warehousing, manufacturing support and on-site offices. With dimensions 75m×35m×20m, it’s built around lightweight steel structure—including a main steel frame structure, fireproof pu rock wool sandwich panels for roofs and walls, and a built-in prefabricated steel mezzanine office. This design ensures structural stability, energy efficiency and multi-functionality, making it a local model for prefabricated industrial construction.

Core Structural & Material Application Highlights

Lightweight Steel Structure Frame & Prefabricated Mezzanine Office Integration

We used a high-strength lightweight steel structure frame as the main load-bearing part, and added a 500㎡ modular prefabricated steel mezzanine office in one corner of the warehouse. Its key benefits are:

The prefabricated steel mezzanine is made of modular beams and columns. It can bear weight stably and makes full use of vertical space, no extra land needed.

The lightweight steel structure is very flexible. It lets the mezzanine connect smoothly with the warehouse, while keeping the structure safe and the building style consistent.

All prefabricated steel components (including frame and mezzanine) speed up on-site assembly, cutting the construction time by 30% compared to traditional concrete structures.

Roof & Wall Fireproof Pu Rock Wool Sandwich Panel Enclosure

We covered the whole warehouse roof and walls with fireproof pu rock wool sandwich panels, which work perfectly with the lightweight steel structure:

It has great thermal insulation performance (≤0.038 W/(m·K)) and Grade A fire resistance, keeping the inside environment stable. This is good for temperature-sensitive goods storage and making the mezzanine office comfortable.

Its good sealing and sound insulation keeps out dust, noise and weather changes from outside.

It’s resistant to corrosion and bad weather, fitting Morocco’s local climate well. This extends the steel building’s service life to over 20 years.

Lightweight Steel Structure Advantages in Industrial Applications

The project makes good use of lightweight steel structure’s strengths: high strength relative to weight, fast prefabricated construction and flexible design. Combining steel frame structure, prefabricated steel mezzanine and fireproof pu rock wool sandwich panels achieves two main goals:

Cost saving: The lightweight structure reduces foundation costs. Prefabrication cuts on-site labor and material waste, lowering overall industrial construction costs.

Multi-functionality: Separated warehousing and office spaces meet the combined needs of logistics storage, manufacturing and daily management.

Project Significance

As a model of integrated prefabricated industrial construction, this warehouse shows the practical value of lightweight steel structure and fireproof pu rock wool sandwich panels. It not only meets local demand for efficient, durable andenergy-saving industrial facilities but also sets a good example for promotingprefabricated steel structure technology in Morocco and North Africa.
